Joyzz 🌎

• Wireless controller for Genesis / Mega Drive. It can be used with Master System as well
• Low power consumption. Up to 150 hours of gameplay on one charge
• Power saving mode. Battery discharge time is more than a year in this mode. If the controller is not used for a few minutes, it goes into power saving mode, after pushing on start or d-pad buttons controller immediately will back to active state
• Quick response. No input lags. Response time is around 2.7ms
• Special compatibility mode with Genesis 3-buttons and SMS controllers. Some games don't work well with 6-button controllers, but joyzz offers compatibility mode to fix this issue
• 800mAh li-ion battery compatible with Nokia BL-4C series. These batteries became the standard, and they were easy to buy and replace at the end of their life
• Charging via Micro-USB port

Special functions:

1. Force power saving mode: Hold MODE+A+X and then click START
2. Exit from power saving mode: START or any key on D-PAD
3. 3-buttons controller mode: Hold for 3 sec. MODE+START+C. Required for some games which not compatible with 6-buttons controllers. Golden Axe II, for example
4. SMS controller mode: Hold for 3 sec. MODE+START+B. Required for some SMS games which is not compatible with genesis controllers.
5. Switch controller to normal 6-buttons mode: MODE+START+Z
6. Sync controller with receiver: Hold sync button on receiver for 4 sec until led on receiver will start blinking. Hold MODE+X+Y+Z until led went out.

All compatibility modes (combo 3 and 4) will resets to default after power cycle on receiver

Receiver indication:

1. Constant led shining: Controller is not connected.
2. Led turned off: Controller connected
3. Slow light pulsation: Low battery level

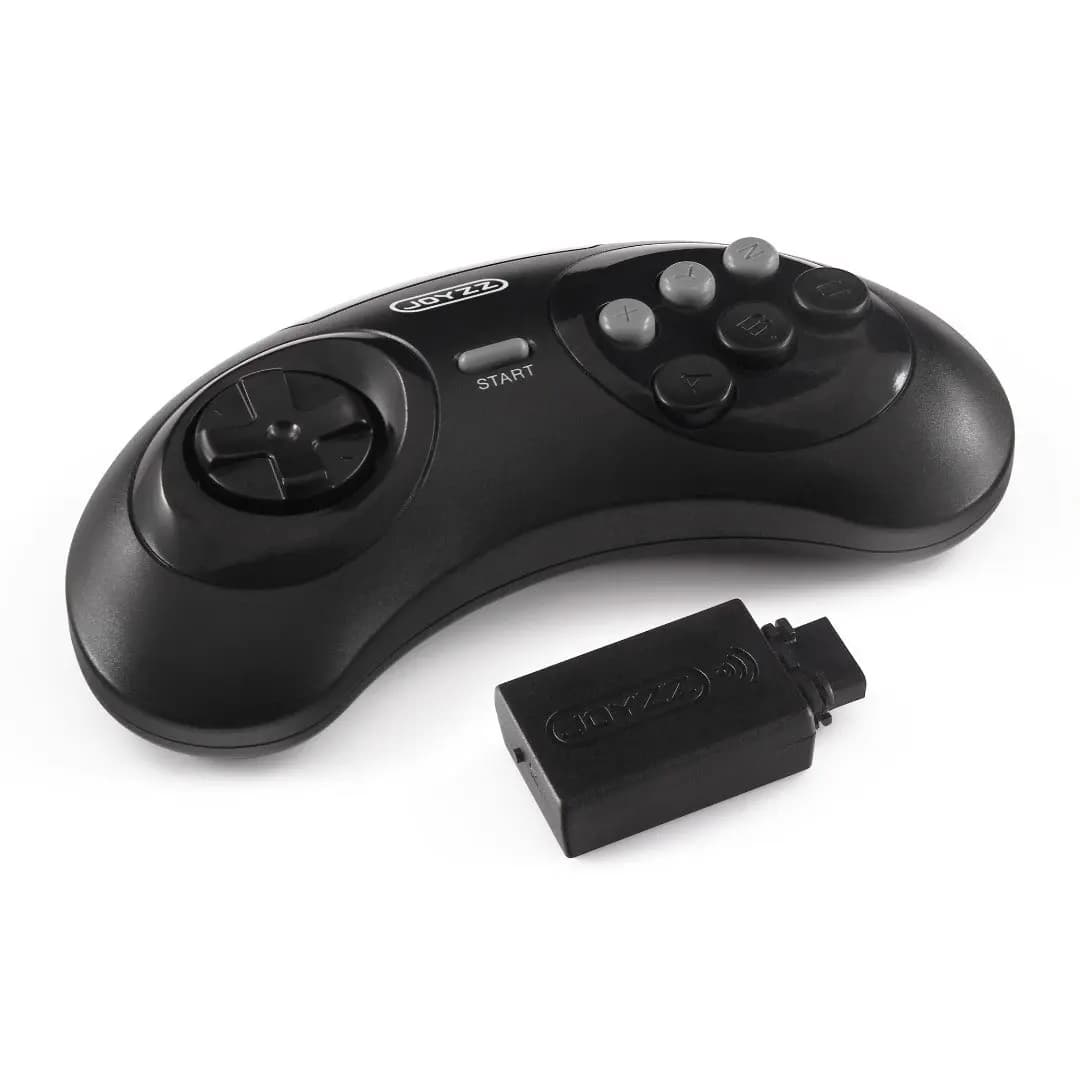

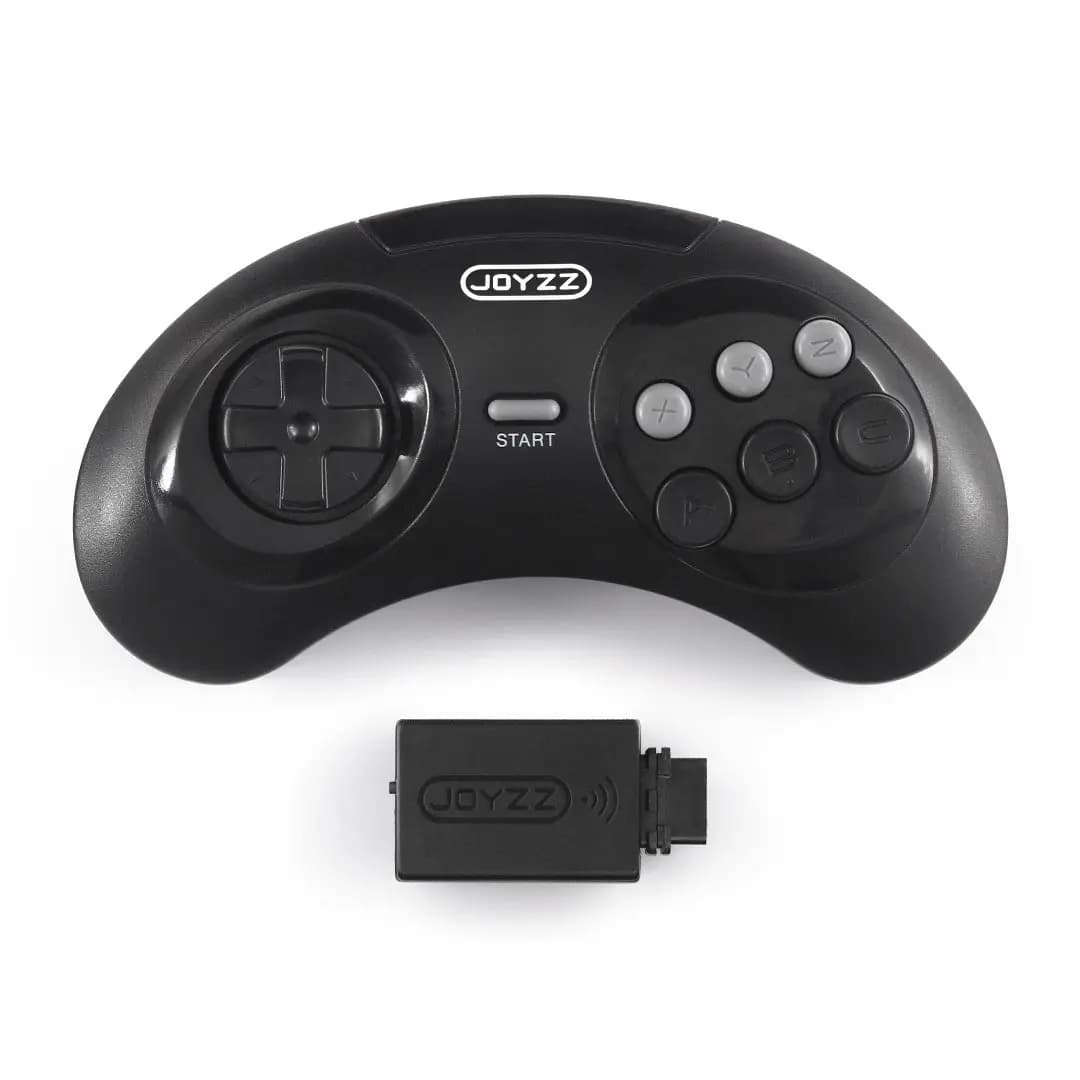

Package bundle: 1x controller + 1x receiver. Charging cable is not included. Any micro-usb cable can be used for charging

jconfig. Joyzz configuration tool allow to update firmware and change some default controller settings. Windows application, but can be used on mac or linux with mono runtime.

joyzz-inf-sega.bin This little tool is for flashcarts. It show controller system information like signal strength, battery level etc.

Downloads (firmware, manuals, tools)

• jconfig
• joyzz-inf-sega.bin

Official page: https://krikzz.com/our-products/controllers/joyzzmd.html
